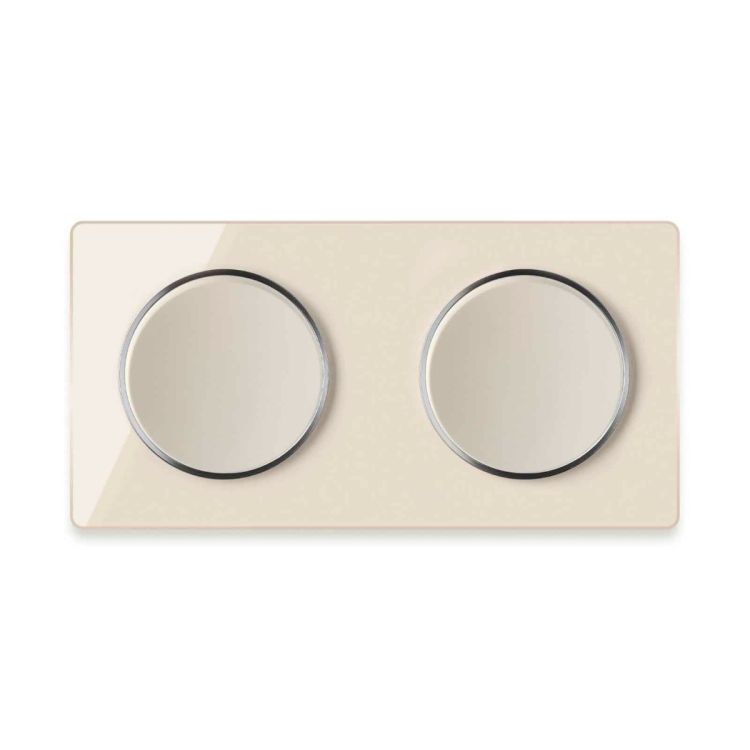

2x Light switch with glass cover frame in 2-way, horizontal - beige
Elegant, scratch-resistant design
Easy to clean and maintain
Protection class IP20
Glass and plastic
2x Single Light Switches with Double Glass Cover Frame
2x Single Light Switches:
The on-off switch is the simplest type of light switch. It is designed for operating a single light fixture and, as the name suggests, can turn that specific light on or off. Basic on-off switches are suitable for smaller rooms with a single light fixture, such as a basement room or a guest toilet.
1x Double Glass Cover Frame:
The Glass Frame Garda, inspired by the crystalline smoothness of Lake Garda, stands out due to its design. This product not only serves its purpose but also becomes a stylish design element for your interior, making it perfect for hotels, cafes, and restaurants.
All OneKeyElectro devices and frames are available in four contemporary colors: classic white, conceptual gray, warm beige, and accent black. They can be mixed and matched, providing numerous possibilities for customization.
Features:
- Elegant, scratch-resistant design
- Easy to clean and maintain
- IP20 protection class
- Mounting direction: horizontal
- Glass and plastic construction
- Underground installation
| Brand | ONEKEYELECTRO |
|---|---|
| Connection | 1 port |
| PACKS | Device with frame (1+1) |
Technische Daten(Lichschalter):
| Montageart | Unterputz |
| Schutzart | IP20 |
| Farbe | weiß, beige, grau, schwarz |
| Nennspannung | 250 V AC |
| Art der Kontakte | schraubenlos |
| Frequenz | 50/60 Hz |
| Nennstrom | 16 A |
| Einbautiefe | 27 mm |
| Anschlussquerschnitt | 1,5 mm² |
| Zentralplatte | 50x50 mm |
| Montage-Lochabstand | 60 mm |
| Werkstoff | Polycorbonat, Metall |
| Umgebungstemperatur | 0 °C bis 45 °C |
Technische Daten(Glas-Abdeckrahmen):
| Einsatzbereich: | Innen |
| Farbe | weiß, beige, grau, schwarz |
| Art | Abdeckrahmen |
| Montagerichtung: | horizontal |
| Аbmessungen | 86x157x15 mm |
| Material | Glass und Polycorbonat |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
