5х series switch set
- elegant, scratch-resistant design
- easy to clean and maintain
- Protection class IP20
- Flush mounting
- available in 4 colors

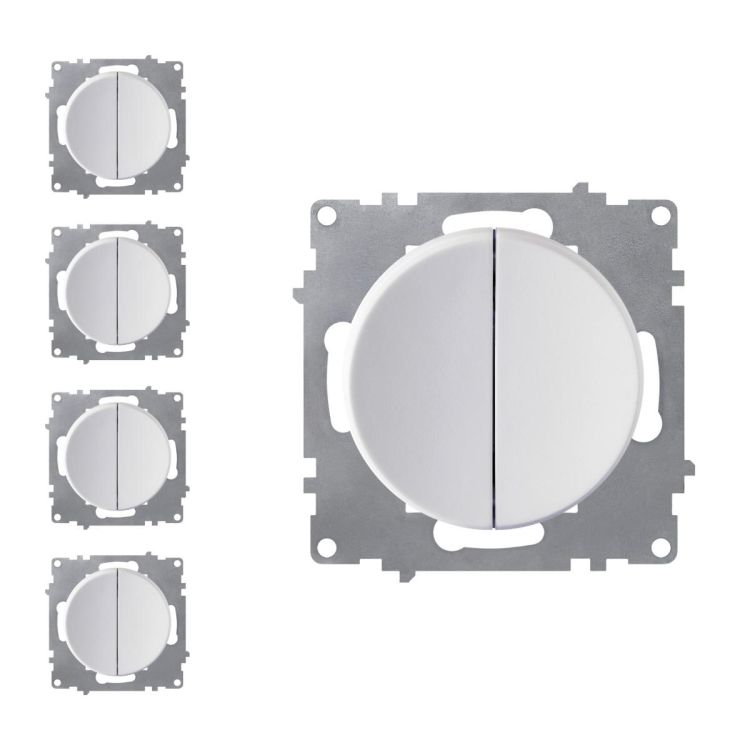

5x series switch, 2-way, flush-mounted, without frame
All built-in devices from our range are compatible with "Florence" and "Garda" frames.
OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambience in your home.
Application
It is a split rocker switch - it is therefore two switches in one. The OneKeyElectro series switch is suitable for all types of lamps - incandescent bulbs, LEDs, halogen lamps. In the bathroom, for example, both the main lighting and the the mirror cabinet lighting can also be switched on.
Popular applications for a series connection are, for example, lights and fans in the bathroom, dining and seating areas in the living room or lights with two separate circuits, such as a chandelier.
Features:
- sleek, scratch-resistant design
- easy to clean and maintain
- without frame
- Protection class IP20
- Flush mounting
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| Connection | 1 port |
| PACKS | 5 packs |
Specifications:
| Type of assembly | flush |
| degree of protection | IP20 |
| color | white, beige, grey, black |
| Rated voltage | 250VAC |
| Type of contacts | screwless |
| Frequency | 50/60Hz |
| Rated current | 16A |
| Installation depth | 27mm |
| Connection cross-section | 1.5 mm2 |
| Center plate | 50x50mm |
| Mounting hole spacing | 60mm |
| Material | polycarbonate, metal |
| Ambient temperature | 0 °C to 45 °C |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
