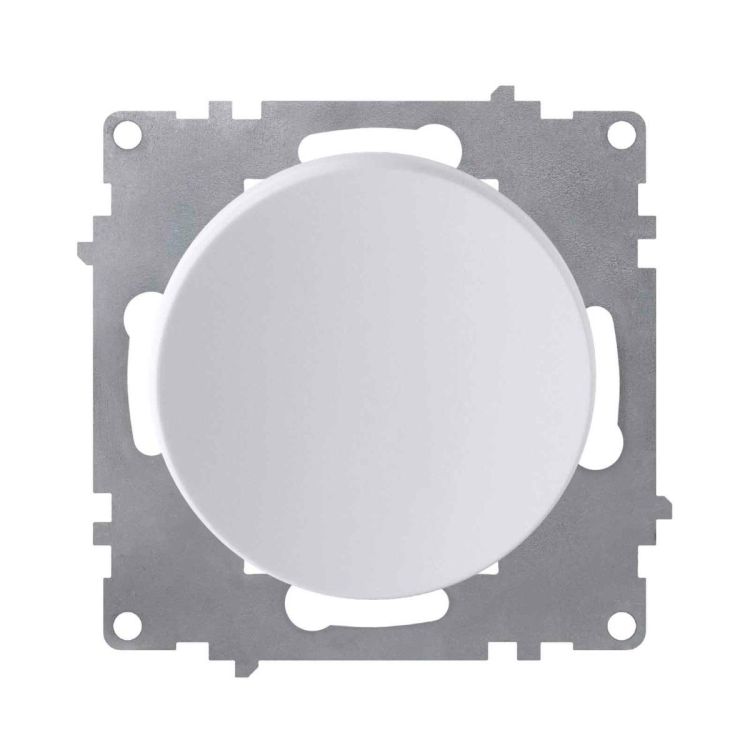

Push button switch, flush-mounted light switch, without frame, round
- elegant, scratch-resistant design
- easy to clean and maintain
- without frame
- protection class IP20
- flush-mounted
Push button switch without frame
OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambience in your home.
Unique design
Push button switch is made of polycarbonate with a matte surface, in line with the current design trend. The matte surface not only gives an aesthetic appeal. There are also no fingerprints when contacting the surface. Another advantage of the OneKeyElectro line is the possibility of choosing a color solution when combining the device and socket frames.
Application
When the button is pressed, the circuit closes and causes a reaction or something is switched. This can be a bell or light. Thanks to a spring in the switch, the rocker switch jumps back to its original position after being pressed and immediately breaks the circuit again.
Features:
- elegant, scratch-resistant design
- easy to clean and maintain
- without frame
- protection class IP20
- flush-mounted
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| IP protection class | IP20 |
| Type of contacts | Screwless |
Technische Daten:
| Einbautiefe | 27 mm |
| Anschlussquerschnitt | 1,5 mm² |
| Zentralplatte | 50x50 mm |
| Montage-Lochabstand | 60 mm |
| Werkstoff | Polycorbonat, Metall |
| Umgebungstemperatur | 0 °C bis 45 °C |
| Zertifikat: | DIN EN 60669-1 (VDE 0632-1) |
| Befestigung | DIN 49200:1987-12 |
| Verbindungsklemmen | VDE 0632-1 |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
