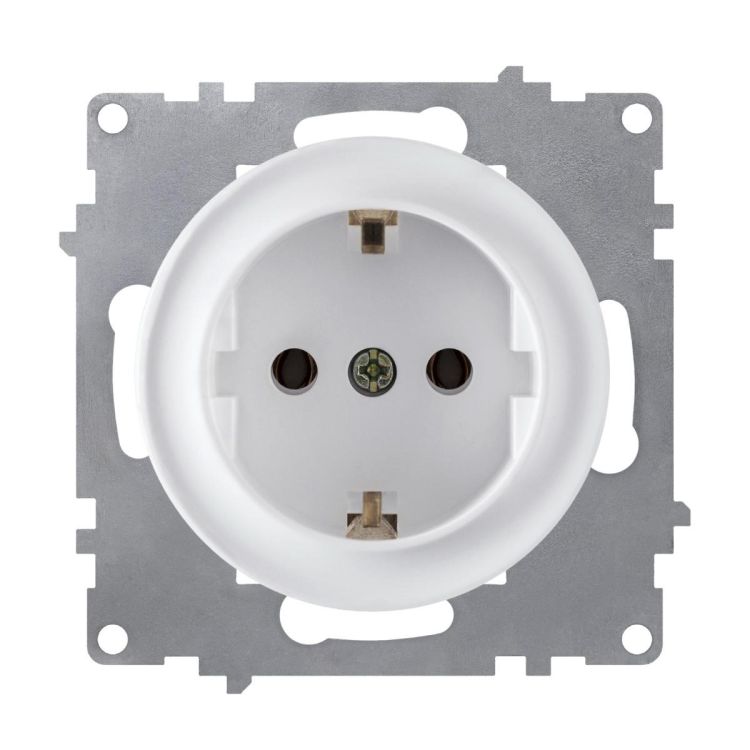

Schuko socket with screw terminals, grounding, 230V/16A, without frame.
- Protective flaps and earthing
- without frame
- screw terminals
- protection class IP20
- good heat resistance
Schuko Socket with Screw Terminals and Grounding, Without Frame
All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.
OneKeyElectro is a range of modern design electrical installation products for safe use in the house and to create a cozy ambiance in your home.
Unique Design
The socket is available in four current colors - classic white, conceptual gray, warm beige, and accent black. The devices can be combined with different frames - plastic from the Florence series or glass from the Garda series.
Fire Safety
The fire safety of the socket is guaranteed by high-quality materials. Heat-resistant plastic elements made from premium polycarbonate are non-flammable. Conductive brass contacts with a high copper content prevent overheating.
Features:
- Protective flaps and grounding
- Without frame
- Screw terminals
- Protection type IP20
- Good heat resistance
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| Connection | 1 port |
| Outlets type | Type F |
| Socket type valid for (select country) | Germany / Austria, Netherlands / Spain, Portugal / Sweden, Norway / Finland |
| Mounting Type | Flush-mount |
| Protection Type | IP20 |
| Color | white, beige, gray, black |
| Rated Voltage | 250 V AC |
| Frequency | 50/60 Hz |
| Nominal Current | 16 A |
| Installation Depth | 32 mm |
| Conductor Cross-section | 2.5 mm² |
| Material | Polycarbonate |
| Ambient Temperature | 0 °C to 45 °C |
| Certification | VDE 0620-1 |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
