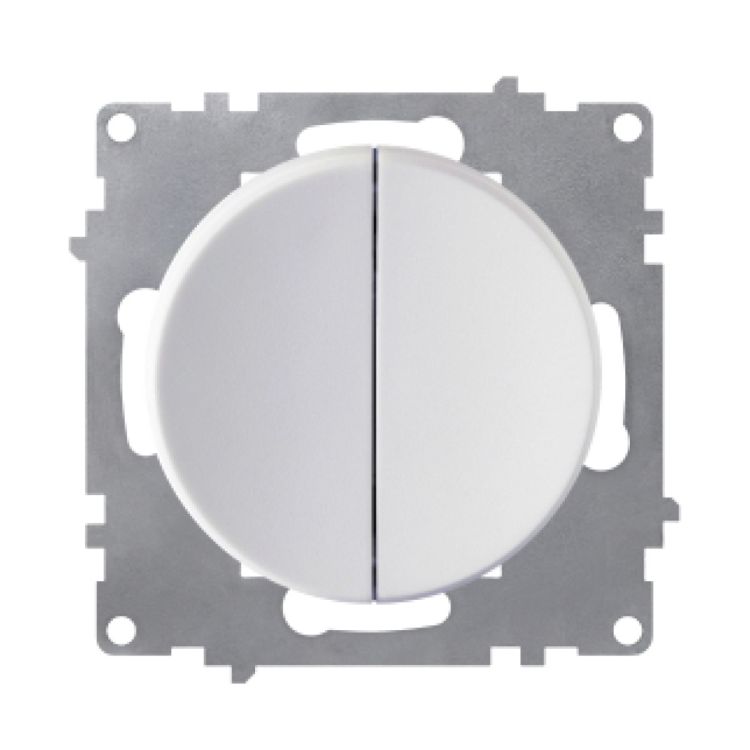

Series switch, double, 1-way, flush-mount, without frame.

€5.03
Incl. 19% VAT
Availability:In stock
Delivery time
2-3 Tage
  • Elegant, scratch-resistant design
  • Easy to clean and maintain
  • Without frame
  • Protection type IP20
  • Flush-mount installation
Return policy 30 days
Only %1 left
SKU
OKE200200
Apple Pay

Series switch, 2-way, flush-mounted, without frame

All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.

OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambience in your home.

Application

It is a switch with a split rocker - it is therefore two switches in one. The OneKeyElectro series switch is suitable for all types of lamps - light bulbs, LEDs, halogen lamps. For example, in the bathroom both the main lighting and the mirror cabinet lighting can be switched from one switch.

Popular applications for a series connection include lights and fans in the bathroom, dining and seating areas in the living room or even lights with two separate circuits, such as a chandelier.

Features:

  • elegant, scratch-resistant design
  • easy to clean and maintain
  • without frame
  • protection class IP20
  • flush-mounted installation

More Information
Delivery time 2-3 Tage
Connection 1 port
Technical Data
Mounting Type Flush-mount
Protection Type IP20
Color white, beige, gray, black
Rated Voltage 250 V AC
Type of Contacts screwless
Frequency 50/60 Hz
Nominal Current 16 A
Installation Depth 27 mm
Conductor Cross-section 1.5 mm²
Central Plate 50x50 mm
Mounting Hole Distance 60 mm
Material Polycarbonate, Metal
Ambient Temperature 0 °C to 45 °C
Certificate: DIN EN 60669-1 (VDE 0632-1)
Fixation DIN 49200:1987-12
Connection Terminals VDE 0632-1



Downloads

Installationsanleitung für Steckdosen und Schalter
