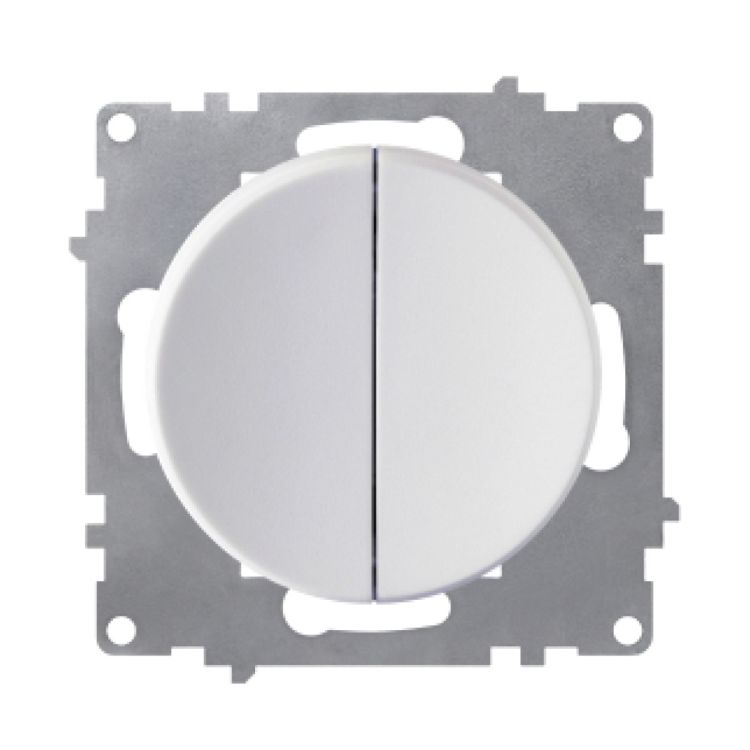

Series switch, double, 1-way, flush-mount, without frame.
- Elegant, scratch-resistant design
- Easy to clean and maintain
- Without frame
- Protection type IP20
- Flush-mount installation
Series switch, 2-way, flush-mounted, without frame
All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.
OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambience in your home.
Application
It is a switch with a split rocker - it is therefore two switches in one. The OneKeyElectro series switch is suitable for all types of lamps - light bulbs, LEDs, halogen lamps. For example, in the bathroom both the main lighting and the mirror cabinet lighting can be switched from one switch.
Popular applications for a series connection include lights and fans in the bathroom, dining and seating areas in the living room or even lights with two separate circuits, such as a chandelier.
Features:
- elegant, scratch-resistant design
- easy to clean and maintain
- without frame
- protection class IP20
- flush-mounted installation
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| Connection | 1 port |
| Mounting Type | Flush-mount |
| Protection Type | IP20 |
| Color | white, beige, gray, black |
| Rated Voltage | 250 V AC |
| Type of Contacts | screwless |
| Frequency | 50/60 Hz |
| Nominal Current | 16 A |
| Installation Depth | 27 mm |
| Conductor Cross-section | 1.5 mm² |
| Central Plate | 50x50 mm |
| Mounting Hole Distance | 60 mm |
| Material | Polycarbonate, Metal |
| Ambient Temperature | 0 °C to 45 °C |
| Certificate: | DIN EN 60669-1 (VDE 0632-1) |
| Fixation | DIN 49200:1987-12 |
| Connection Terminals | VDE 0632-1 |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
