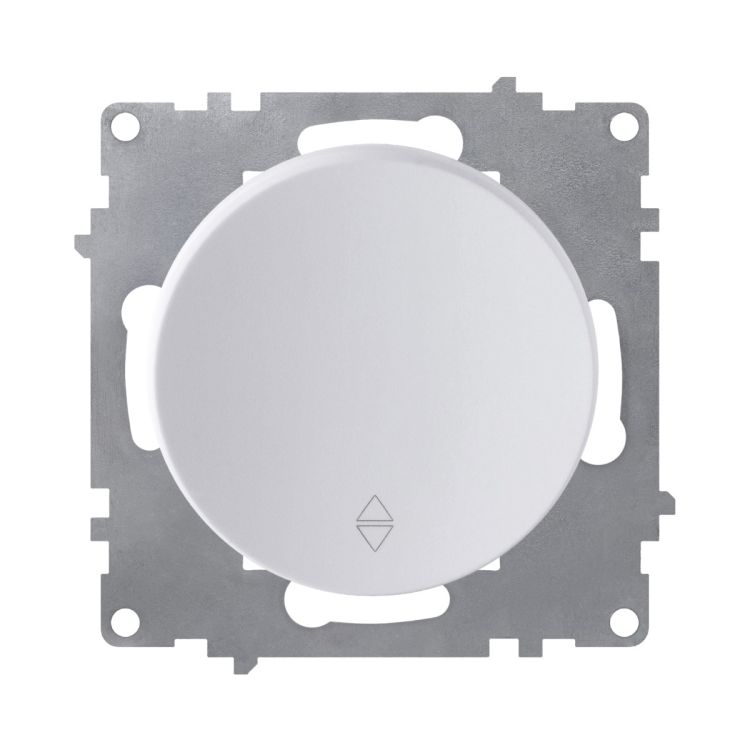

Single switch, flush-mount, without frame

€4.14
Incl. 19% VAT
Availability:In stock
Delivery time
2-3 Tage
  • Elegant, scratch-resistant design
  • Easy to clean and maintain
  • Without frame
  • Protection type IP20
  • Flush-mount installation
Return policy 30 days
Only %1 left
SKU
OKE200100
Apple Pay

Changeover switch, 1-way, flush-mounted, without frame,

All built-in devices from our range are compatible with the "Florence" and "Garda" cover frames.

OneKeyElectro is a range of modern designer electrical installation products for safe use in the home and to create a cozy ambience in your home.

Application

The changeover switch is always required when an electrical device, such as a lamp, is to be switched on or off independently from two different locations or switches. The most common use for the two-way switch is to switch lights on and off in the hallway, corridors or larger rooms with two passages, such as the living room - passage to the kitchen. You will therefore need to connect two light switches there for a two-way switch.

Features:

  • elegant, scratch-resistant design
  • easy to clean and maintain
  • without frame
  • protection class IP20
  • flush-mounted installation

More Information
Delivery time 2-3 Tage
Connection 1 port
Technical Data
Mounting Type Flush-mount
Protection Type IP20
Color white, beige, gray, black
Rated Voltage 250 V AC
Type of Contacts screwless
Frequency 50/60 Hz
Nominal Current 16 A
Installation Depth 27 mm
Conductor Cross-section 1.5 mm²
Central Plate 50x50 mm
Mounting Hole Distance 60 mm
Material Polycarbonate, Metal
Ambient Temperature 0 °C to 45 °C
Certificate: DIN EN 60669-1 (VDE 0632-1)
Fixation DIN 49200:1987-12
Connection Terminals VDE 0632-1
Downloads

Installationsanleitung für Steckdosen und Schalter
