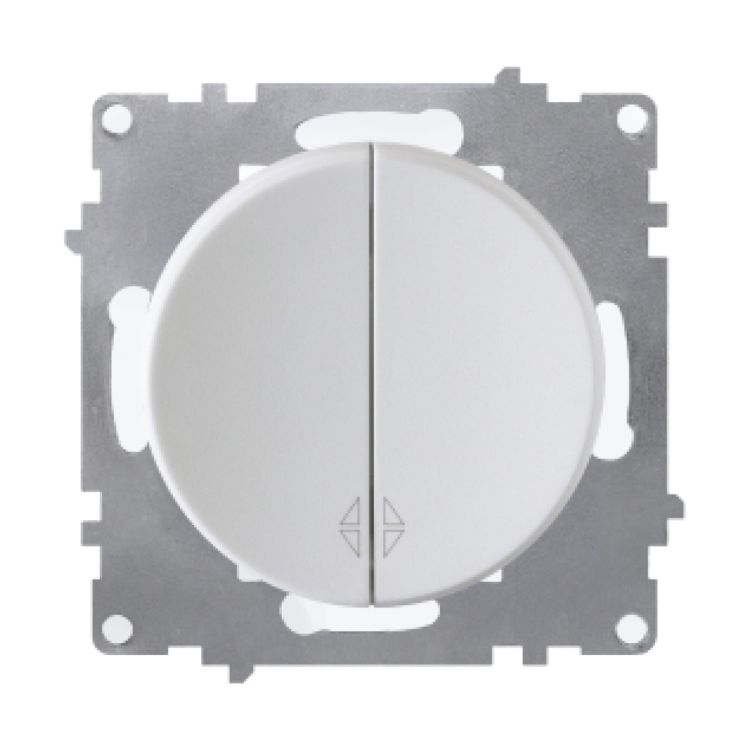

Double changeover switch, flush-mount, without frame.

€5.91
Incl. 19% VAT
Availability:In stock
Delivery time
2-3 Tage
  • Elegant, scratch-resistant design
  • Easy to clean and maintain
  • Without frame
  • Protection type IP20
  • Certified according to DIN EN 60669-1 (VDE 0632-1)
  • Flush-mount installation
Return policy 30 days
Only %1 left
SKU
OKE200300
Apple Pay

Double Changeover Switch, Flush-Mount, Without Frame

All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.

OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambiance in your residence.

Application

A changeover switch is required when an electrical device, such as a lamp, needs to be switched on or off independently from two different locations or switches. It is most commonly used to control lighting in hallways, passages, or larger rooms with two entrances, such as a living room leading to the kitchen. Thus, two light switches are needed for a changeover circuit.

Features:

  • Elegant, scratch-resistant design
  • Easy to clean and maintain
  • Without frame
  • Protection type IP20
  • Certified according to DIN EN 60669-1 (VDE 0632-1)
  • Flush-mount installation

More Information
Delivery time 2-3 Tage
Connection 1 port
Technical Data
Mounting Type Flush-mount
Protection Type IP20
Color white, beige, gray, black
Rated Voltage 250 V AC
Type of Contacts screwless
Frequency 50/60 Hz
Nominal Current 16 A
Installation Depth 27 mm
Conductor Cross-section 1.5 mm²
Central Plate 50x50 mm
Mounting Hole Distance 60 mm
Material Polycarbonate, Metal
Ambient Temperature 0 °C to 45 °C
Certificate: DIN EN 60669-1 (VDE 0632-1)
Fixation DIN 49200:1987-12
Connection Terminals VDE 0632-1



Downloads

Installationsanleitung für Steckdosen und Schalter
