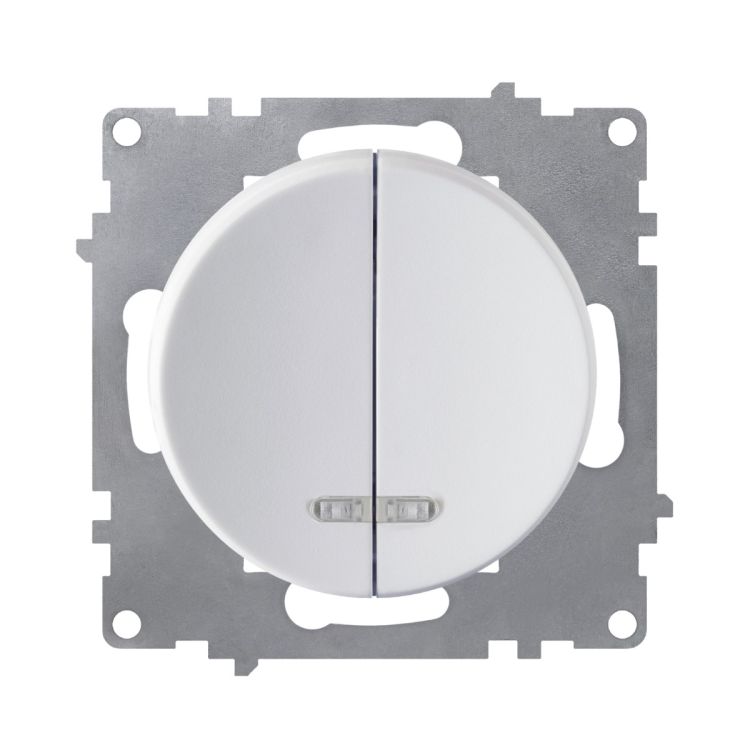

Double light switch with indicator light, dual, 1-way, flush-mount, without frame.

€5.64
Incl. 19% VAT
Availability:In stock
Delivery time
2-3 Tage
  • Elegant, scratch-resistant design
  • Pilot lamp
  • Easy to clean and maintain
  • Without frame
  • Protection type IP20
  • Certified according to DIN EN 60669-1 (VDE 0632-1)
  • Flush-mount installation
Return policy 30 days
Only %1 left
SKU
OKE202300
Apple Pay

Double Light Switch with Indicator Light, Single, Flush-Mount, Without Frame

All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.

OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambiance in your residence.

Application

A control switch is an illuminated switch with an integrated LED lamp. Control switches are often installed outside bathrooms or toilets to indicate whether the space is occupied or free. Additionally, control switches can serve as orientation lights. In this case, the pilot lamp on the switch remains permanently lit to help locate the switch in the dark.

Features:

  • Elegant, scratch-resistant design
  • Pilot lamp
  • Easy to clean and maintain
  • Without frame
  • Protection type IP20
  • Certified according to DIN EN 60669-1 (VDE 0632-1)
  • Flush-mount installation

More Information
Delivery time 2-3 Tage
Connection 1 port
Technical Data
Mounting Type Flush-mount
Protection Type IP20
Color white, beige, gray, black
Rated Voltage 250 V AC
Type of Contacts screwless
Frequency 50/60 Hz
Nominal Current 16 A
Installation Depth 27 mm
Conductor Cross-section 1.5 mm²
Central Plate 50x50 mm
Mounting Hole Distance 60 mm
Material Polycarbonate, Metal
Ambient Temperature 0 °C to 45 °C
Certificate: DIN EN 60669-1 (VDE 0632-1)
Fixation DIN 49200:1987-12
Connection Terminals VDE 0632-1



Downloads

Installationsanleitung für Steckdosen und Schalter
