Combination Data Connection Box, Double, 2-Port, Network Socket 2xRJ45, CAT5e, Flush-Mount, Without Frame.
- Protective flaps and grounding
- Dirt protection
- Without frame
- Screw terminals
- Protection type IP20
- Good heat resistance

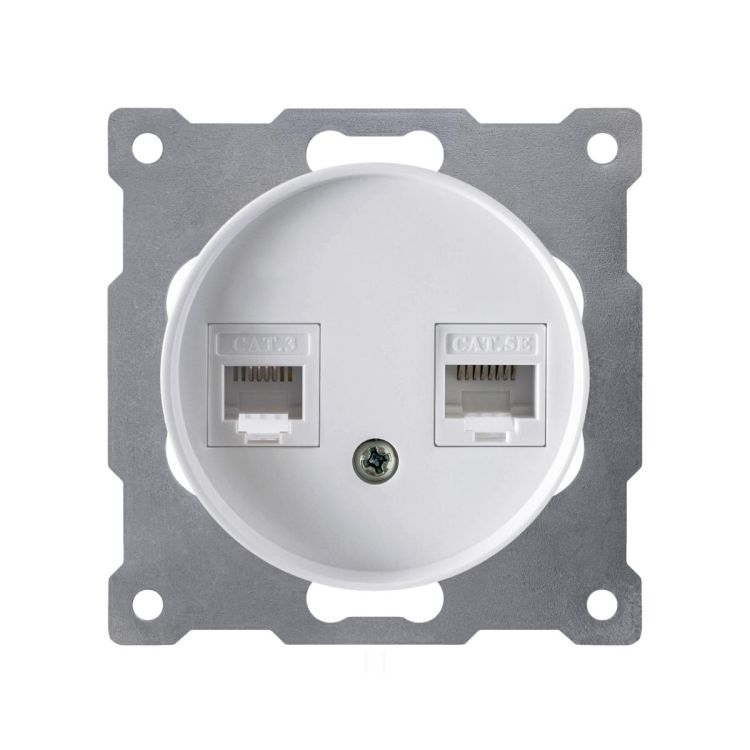

Data connection box 2xRJ45, CAT5e, without frame
All built-in devices from our range are compatible with the "Florence" and "Garda" cover frames.
OneKeyElectro is a range of modern design electrical installation products for safe use in the home and to create a cozy ambience in your home.
Unique design
The double RJ45 internet socket is made of polycarbonate with a matt surface, in line with the current design trend. The matt surface not only gives it an aesthetic appeal. It also does not leave fingerprints when you come into contact with the surface. Another advantage of the OneKeyElectro line is the possibility of choosing a color solution when combining the device and socket frames.
Application
With this CAT5 internet socket, you can easily set up an internet connection in every room in the house. This means online access is plan-free with maximum flexibility. This socket can be mounted on the wall (flush-mounted).
Features:
- Protective flaps and earthing
- Dirt protection
- without frame
- Screw terminals
- Protection class IP20
- good heat resistance
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| Connection | 1 port |
| Mounting Type | Flush-mount |
| Protection Type | IP20 |
| Color | white, beige, gray, black |
| Rated Voltage | 12 V |
| Frequency | 100 MHz |
| Nominal Current | 500 mA |
| Installation Depth | 32 mm |
| Mounting Hole Distance | 60 mm |
| Product Dimensions with Frame | 80.5x80.5x41 mm |
| Central Plate | 50x50 mm |
| Material | Polycarbonate |
| Ambient Temperature | 0 °C to 45 °C |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
