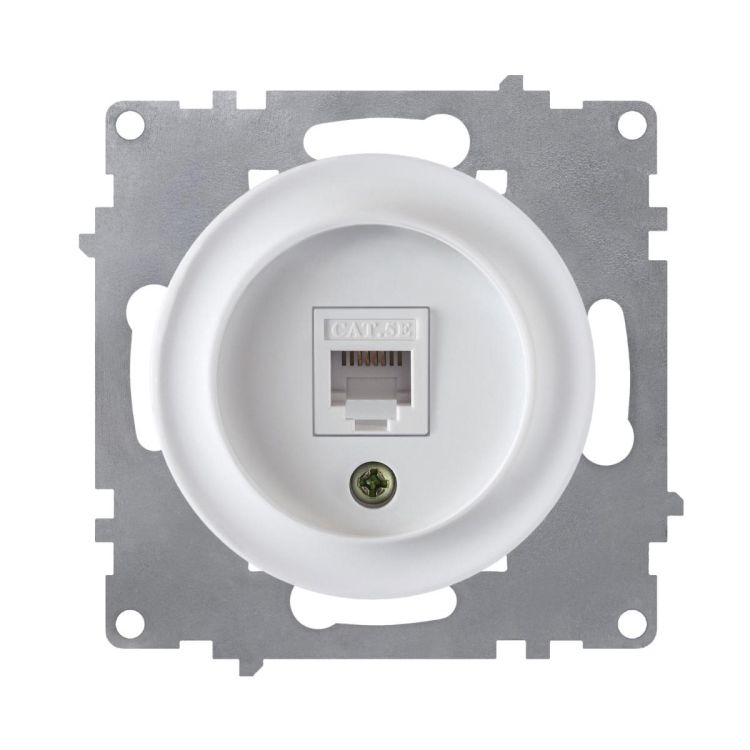

Data connection socket, network socket 1xRJ45, CAT5e, flush-mount, without frame.
- Protective flaps and grounding
- Dirt protection
- Without frame
- Screw terminals
- Protection type IP20
- Good heat resistance
Data Connection Box 1xRJ45, CAT5e, Without Frame
All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.
OneKeyElectro is a range of modern design electrical installation products for safe use in the house and to create a cozy ambiance in your home.
Unique Design
The RJ45 internet socket is made of polycarbonate with a matte finish, in line with current design trends. The matte surface not only provides an aesthetic appeal but also prevents fingerprints on contact. Another advantage of the OneKeyElectro line is the option to choose a color solution when combining device and socket frames.
Application
With this CAT5 internet socket, you can easily implement an internet connection in any room of the house. It allows for online access with maximum flexibility. This socket can be wall-mounted (flush-mount installation).
Features:
- Protective flaps and grounding
- Dirt protection
- Without frame
- Screw terminals
- Protection type IP20
- Good heat resistance
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| Connection | 1 port |
| Mounting type | Flush-mounted |
| Protection class | IP20 |
| Color | white, beige, gray, black |
| Rated voltage | 12 V |
| Frequency | 100 MHz |
| Rated current | 500 mA |
| Installation depth | 32 mm |
| Mounting hole spacing | 60 mm |
| Product dimensions with frame | 80.5x80.5x41 mm |
| Central plate | 50x50 mm |
| Material | Polycarbonate |
| Ambient temperature | 0°C to 45°C |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
