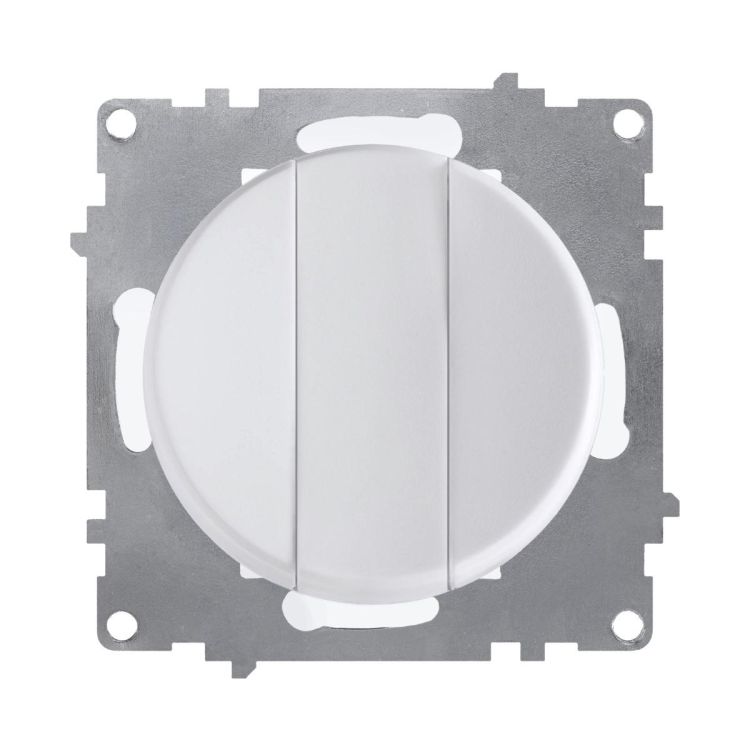

Triple series switch, 1-way, flush-mount, without frame
- Elegant, scratch-resistant design
- Easy to clean and maintain
- Without frame
- Protection type IP20
- Certified according to DIN EN 60669-1 (VDE 0632-1)
- Flush-mount installation
Triple Series Switch, Flush-Mount, Without Frame
All built-in devices from our range are compatible with "Florence" and "Garda" cover frames.
OneKeyElectro offers a range of modern design electrical installation products for safe use in the home and to create a cozy ambiance in your residence.
Application
This is a switch with a split rocker, meaning it integrates two switches in one. The OneKeyElectro triple series switch is suitable for all types of lamps—incandescent, LED, halogen. For example, in a bathroom, it can control both the main lighting and the mirror cabinet lighting from one switch.
Common applications for a series switch include controlling a light and fan in a bathroom, dining and seating areas in a living room, or lights with two separate circuits, such as with a chandelier.
Features:
- Elegant, scratch-resistant design
- Easy to clean and maintain
- Without frame
- Protection type IP20
- Certified according to DIN EN 60669-1 (VDE 0632-1)
- Flush-mount installation
| Brand | ONEKEYELECTRO |
|---|---|
| Delivery time | 3-5 days |
| Connection | 1 port |
| Mounting Type | Flush-mount |
| Protection Type | IP20 |
| Color | white, beige, gray, black |
| Rated Voltage | 250 V AC |
| Type of Contacts | screwless |
| Frequency | 50/60 Hz |
| Nominal Current | 16 A |
| Installation Depth | 27 mm |
| Conductor Cross-section | 1.5 mm² |
| Central Plate | 50x50 mm |
| Mounting Hole Distance | 60 mm |
| Material | Polycarbonate, Metal |
| Ambient Temperature | 0 °C to 45 °C |
| Certificate: | DIN EN 60669-1 (VDE 0632-1) |
| Fixation | DIN 49200:1987-12 |
| Connection Terminals | VDE 0632-1 |
Safety Information:
- All work, including installation, commissioning, and maintenance of the product, should be carried out by a qualified electrician in accordance with the instructions.
- All work may only be carried out when all live electrical connections are completely switched off.
- Improper installation and use can result in damage, electric shock, or fire.
- The currently applicable protective measures in accordance with DIN VDE 0100 and the relevant part must be observed and applied.
- All appropriate safety measures must be taken before installation.
Manufacturer Information:
Manufacturer, Importer, Responsible Person: Warm-On GmbH
Address: Rastatter Str. 30, 75179 Pforzheim, Germany, e-mail: info@warm-on.com
Declaration of Conformity:
Links to download the Declaration of Conformity:
